  Enlarge
Manufacturer HiVi

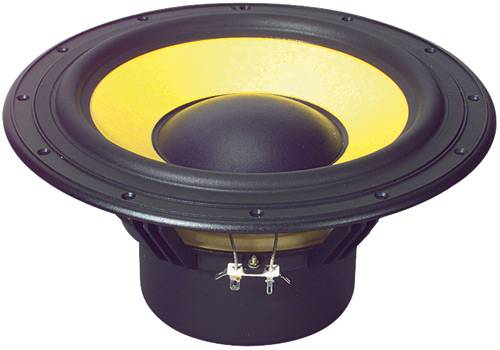

HiVi F10 10" Woofer

In Stock 10
Features: * Light and extremely rigid cone made from Kevlar/paper composite * High loss rubber surround * High power handling aluminum former voice coil * Long-throw motor system with extended linear excursion capability * High-density aluminum die-cast basket. The design of the F10 has been optimized for dynamic low bass performance in a compact or medium size vented enclosure. The F10 utilizes a newly developed matrix of Kevlar and paper fibers. The cone weighs less, is more rigid and has an improved damping factor. It keeps distortion very low through the wide frequency and power range. The driver has a vented pole piece to avoid air compression and ensure maximum power handling. The long-throw design provides clean and articulated bass performance at high volumes. The massive aluminum die-cast basket has been developed to minimize structural resonances. Recommended crossover frequency, 300Hz. Specifications: * Power handling: 120 watts RMS/170 watts max * Voice coil diameter: 2" * Voice coil inductance: 1.98 mH * Nominal impedance: 8 ohms * DC resistance: 6.5 ohms * Frequency response: 28-800Hz * Fs: 28 Hz * SPL: 90 dB 1W/1m * Vas: 3.02 cu. ft. * Qms: 2.00 * Qes: .36 * Qts: .31 * Xmax: 6.5 mm * Net weight: 10 lbs. * Dimensions: Overall Diameter: 11-5/16", Cutout Diameter: 9-1/8", Mounting Depth: 5", Magnet Diameter: 5-1/4".
List Price: $149.99
Price: $122.26
Product Reviews
No Reviews For This Product.
